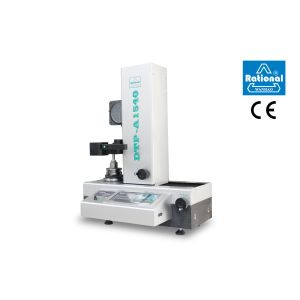

    Reliable Tool Presetting Machine 780×530×950 Mm ISO Certification


    Product Character

    X and Z-axis all adopt granite pedestal

    X and Z-axis all open linear scale.

    Operate with drag handle and which ensure aiming and efficiency fine-turning hand wheel


    Product brief:
    This instrument is a high precision tool presetter integrating optics, machinery, electronics and video. It is widely used to measure the exact coordinate position of the tools used in the digital control machine tool, processing center and soft manufacturing unit. It can also inspect the angle, round corners and so on.

    Specifications:

    Principal axis

    Available in BT30, BT40 or BT50 in accordance with customized requirement.

    Measuring range

    iameter (X axis): 300mm Height (Z axis): 30~400mm

    Digital Measuring System

    Linear scale resolution (X, Y-axis): 0.0005mm

    Diameter, semi-diameter, height, angle, arc, cutting angle, or back bevel angle available by DTP-1540

    Sampling by foot-switch; output by RS232; output by printer

    Aiming System

    HD CCD camera, 17color display

    0.5X lens (Total magnification: 20X)

    Standard: cross curve

    Illumination

    Profile illumination is LED. Surface illumination is halogen lamp (24V, 30W). Brightness adjustable.

    Dimension (L×W×H)

    780×530×950(mm)

    Weight

    90 or so
