    50/60HZ Tool Presetting Machine BT40 Principal Axis ISO Approved

    Ask Lasest Price
    Brand Name : rational
    Certification : CE ISO
    Delivery Time : After received down payment 5-15workdays
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    • Product Details
    • Company Profile

    50/60HZ Tool Presetting Machine BT40 Principal Axis ISO Approved

    50/60HZ Tool Presetting Machine BT40 Principal Axis ISO Approved


    Product brief:

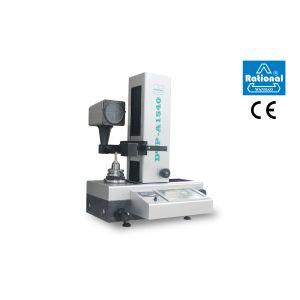

    This instrument is a high precision tool presetter integrating optics, machinery, electronics and video. It is widely used to measure the exact coordinate position of the tools used in the digital control machine tool, processing center and soft manufacturing unit. It can also inspect the angle, round corners and so on.

    Specifications:

    Measuring range

    Diameter (X-axis): 300 Height(Z-axis): 30~400

    Linear scale resolution (X, Y-axis)

    0.0005mm

    Principal axis

    BT40

    Diameter of screen

    120

    Lens Magnification

    20X

    Illumination

    Adjustable halogen lamp (24V, 20W)

    Power supply

    AC110/220V 50/60HZ

    Dimension (L×W×H)

    780×530×950(mm)

    Net weight

    90kg or so
